Low-Pressure Fog Nozzle - 0.5 mm

Na stanie
zł10.57 netto
zł13.00 brutto
  • fogging nozzle - low pressure
  • material - nickel-plated brass
  • hole size - 0.5 mm

WHICH NOZZLE TO CHOOSE AND WHAT TO PAY ATTENTION TO WHEN PURCHASING

poland_icon.png Polish distributor - for 10 years we have been importing nozzles and guaranteeing their quality
Delivery time - 98% within 24 hours
telefon_icon.png Have questions? Call us! - 697 026 236

Ask about product

Please fill below informations. Customer service will contact with You soon as is possible.

* Required fields

Cancel or

You might also like

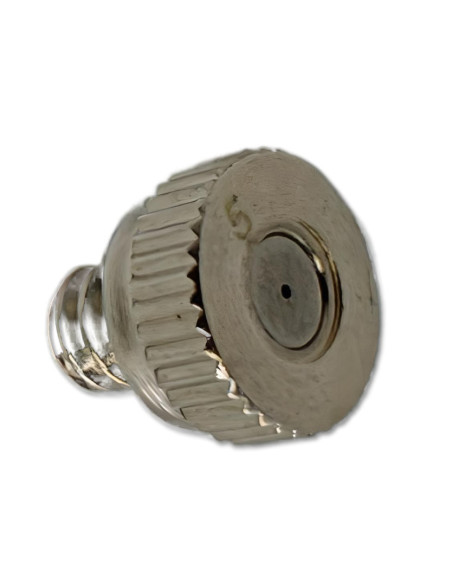

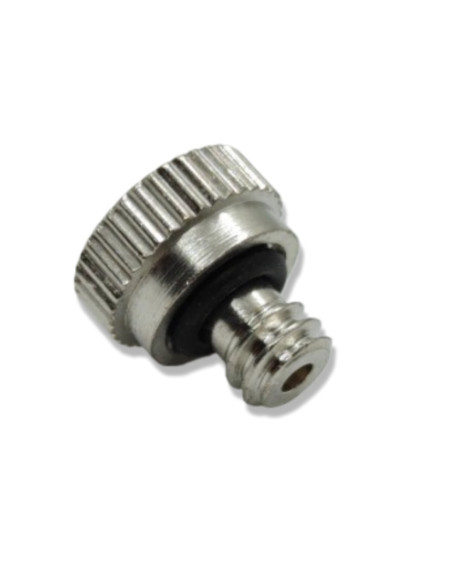

Low-pressure fog nozzle 0.5 mm made of brass with a UNC 10/24 inch connection thread. Suitable for fogging systems and water cooling.

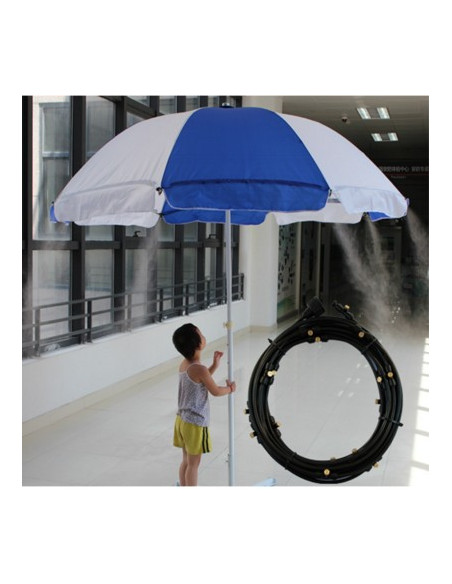

The low-pressure fogging system is an excellent solution for hot, dry days. It allows for quick humidification of the room without soaking it. Using it on terraces, gardens, patios, beer gardens, under umbrellas, etc., you can quickly provide a pleasant, cool breeze for yourself and your guests. It is also suitable for use in warehouses, vegetable stands for humidity regulation, and water cooling. It can cool the environment by about 60 C.

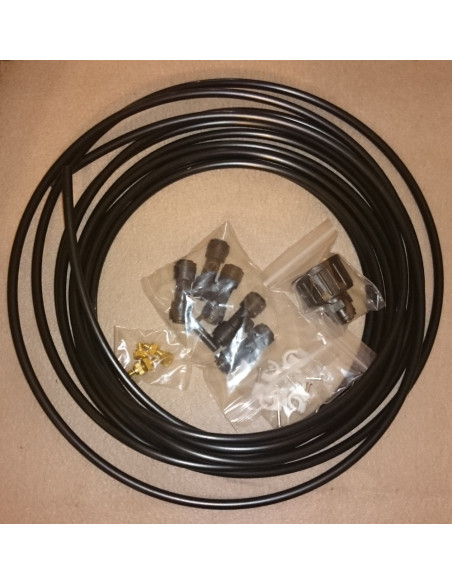

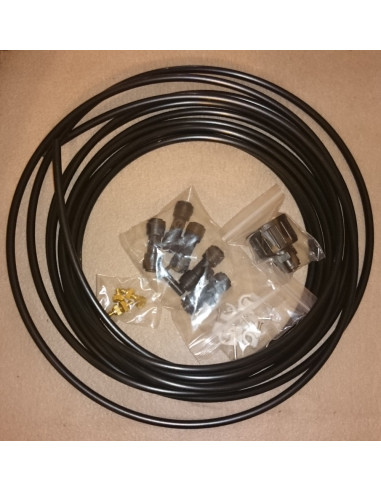

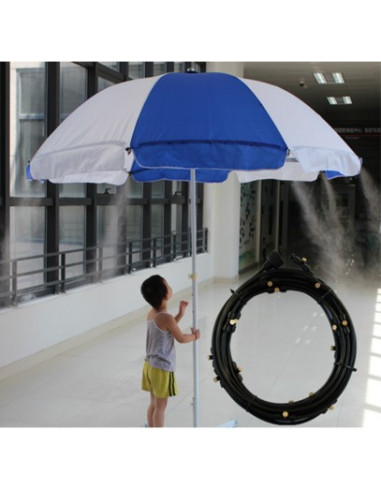

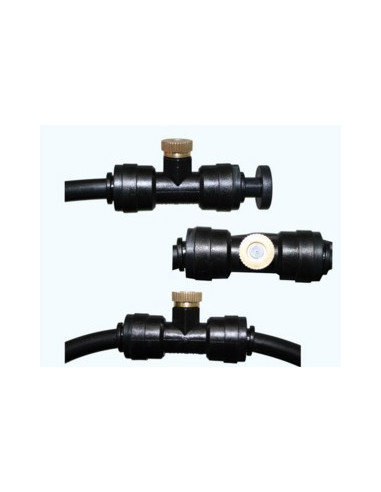

The complete set allows you to build a fogging, humidifying, and cooling line of 4 - 6 m in length. Nozzles should be installed at a distance of 0.8m to 1.15m apart. It is also possible to mount it on a fan or several fans simultaneously, which enhances the fogging, humidifying, and especially cooling effects in rooms and outdoor areas. Flow rate is 0.2 l/min.

PRODUCT DESCRIPTION:

  • Material: brass
  • Hole size: 0.5 mm
  • Working pressure: 1-20 bar
  • Connection thread: 10/24 UNC 3/16 inch




APPLICATION:


  • Disinfection of production rooms, especially in the food industry.
  • Professional fog humidification while simultaneously cleaning the air from pollutants such as dust, dirt, and smoke.
  • Combatting mosquitoes, flies, and other persistent insects indoors.
  • Elimination of unpleasant odors generated during production processes or at landfills.
  • Agriculture - for disinfection, pest control, humidity control, lowering temperature in rooms, administering inhaled medications, etc. in poultry farming, pigsties, barns, stables, zoos, greenhouses, plastic tunnels, mushroom farms, humidifiers for snails,
  • Industry - for disinfection, pest control, humidity control, lowering temperature in rooms, reducing dust in warehouses, production halls, mills, mining, sawmills, carpentries, wood warehouses, spinning mills, etc.
  • Gastronomy - for humidity control, removal of unpleasant odors, combating mosquitoes and flies, disinfection and cooling of rooms, terraces, patios, catering tents, bars, pubs, nightclubs, etc.
  • Home - for humidity control, removal of unpleasant odors, combating mosquitoes and flies, disinfection and cooling of rooms, terraces, patios


More about fogging



COMPARISON OF FOG NOZZLES:


Tabela_PORÓWNANIE DYSZ.jpg





WHAT TO PAY ATTENTION TO WHEN PURCHASING A NOZZLE?

1. Nozzle hole size

  • Small hole: Generates finer droplets, creating a delicate mist. Used in systems requiring precise fogging, e.g., in cooling, humidifying, or decorative effects.
  • Large hole: Produces larger droplets. Better for watering plants, reducing dust, or in industrial applications where very fine mist is not required.

2. Material of construction

Material affects durability, wear resistance, and corrosion resistance.
  • Brass: Durable, corrosion-resistant, often used in standard applications.
  • Stainless steel: Strong, resistant to chemicals and high temperatures, suitable for demanding environments (e.g., in the food industry).
  • Plastic: Lightweight and economical, suitable for less demanding applications.

3. Mechanism of action

  • High-pressure nozzles: Produce a fine mist under high water or liquid pressure. Used in evaporative cooling, dust suppression systems, or disinfection.
  • Air-atomizing nozzles: Use compressed air to break the liquid into a fine mist. Used in industry, e.g., for spray painting or humidifying in production processes.

4. Liquid flow

  • Determines how much water or liquid flows through the nozzle in a given time.
  • The choice depends on demand – smaller flows are more effective for precise fogging, larger for more intense applications such as irrigation.

5. Spray angle

  • Nozzles have different spray angles, usually from 30° to 120°.
  • Narrow angle (e.g., 30°–60°): Better for precise spraying in a specific area, e.g., spot cooling or humidifying small surfaces.
  • Wide angle (90°–120°): Ideal for even coverage of larger spaces, e.g., in dust suppression systems or decorative effects.
  • Choosing the angle affects the efficiency and coverage of the mist in a given application.

6. Type of generated mist

  • Ultrafine mist (e.g., droplets with a diameter <10 microns): For cooling, humidifying, dust suppression.
  • Coarser mist: For irrigation or chemical applications.

7. Additional features

  • Anti-drip: Prevents water from dripping after pressure is turned off.
  • Self-cleaning: Has a mechanism that prevents clogging of the holes.

8. Clogging resistance

  • Nozzles with internal filters: Protect against solid particles and clogging, which is crucial when using lower quality water.

  • Self-cleaning nozzles: Have a mechanism that prevents the opening from blocking.


OUR NOZZLES COMPARED TO OTHERS








ADDITIONAL INFORMATION:

From experience, we know that you have many questions about both nozzles and fogging systems.
We encourage you to contact us via email or phone.
The smiling gentleman below will surely help you smile.png

Andrzej
tel. 697026236
sklep@ajkwiatkowscy.pl
