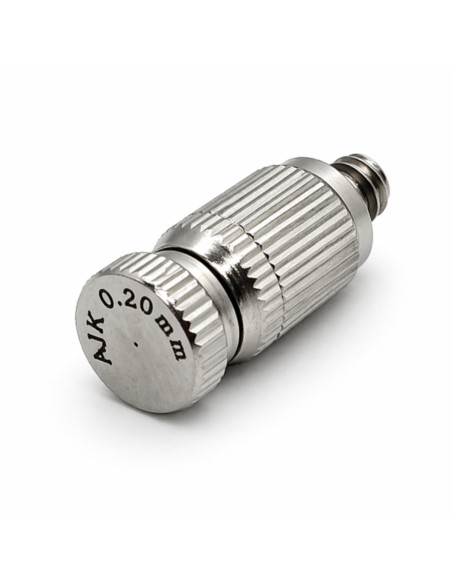

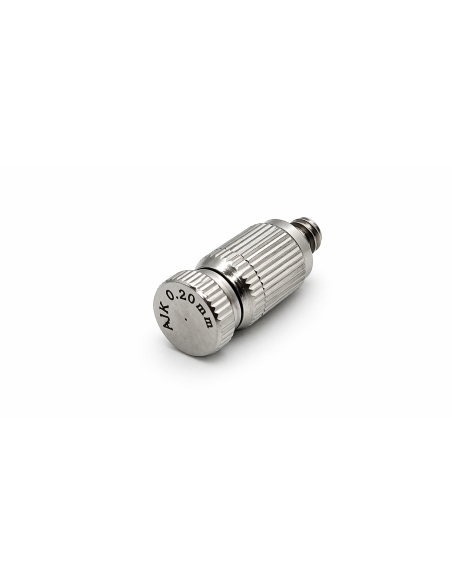

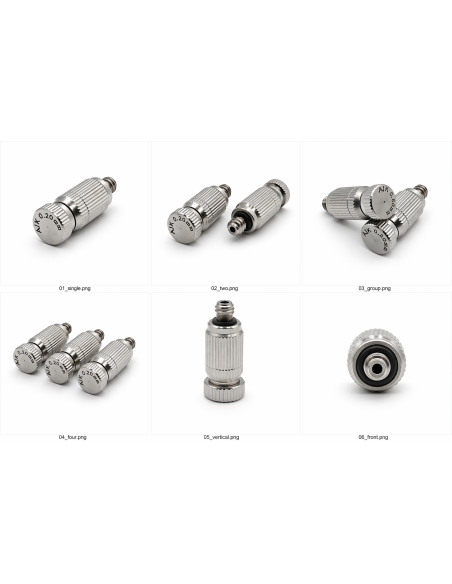

Low-Pressure Non-Dripping Fog Nozzle 0.2 mm
Low-Pressure Non-Dripping Fog Nozzle 0.2 mm
Low-Pressure Non-Dripping Fog Nozzle 0.2 mm
Low-Pressure Non-Dripping Fog Nozzle 0.2 mm
  • New
Low-Pressure Non-Dripping Fog Nozzle 0.2 mm
Low-Pressure Non-Dripping Fog Nozzle 0.2 mm
Low-Pressure Non-Dripping Fog Nozzle 0.2 mm
Low-Pressure Non-Dripping Fog Nozzle 0.2 mm

copy of copy of Low-Pressure Non-Dripping Fog Nozzle 0.2 mm

Na stanie
zł16.26 netto
zł20.00 brutto
  • fogging nozzle - low-pressure
  • material -nickel-plated brass, outlet stainless steel SS304
  • orifice size - 0.2 mm

WHICH NOZZLE TO CHOOSE AND WHAT TO PAY ATTENTION TO WHEN PURCHASING

poland_icon.png Polish distributor - for 12 years we have been importing nozzles and guaranteeing their quality
Delivery time - 98% within 24 hours
telefon_icon.png Have questions? Call us! - 697 026 236

Ask about product

Please fill below informations. Customer service will contact with You soon as is possible.

* Required fields

Cancel or

Quantity Unit discount You Save
50 zł1.00 zł50.00

You might also like



Low-Pressure Fog Nozzle - 0.2 mm



The 0.2 mm low-pressure non-dripping fog nozzle is made of nickel-plated brass, with a stainless steel SS304 outlet and a UNC 10/24 inch connection thread. Suitable for medium and high-pressure fogging systems, for disinfection and fumigation.

The fogging system with water cooling is an excellent solution for hot, dry days. It allows for quick humidification of the room without wetting it. When used on terraces, gardens, patios, beer gardens, under umbrellas, etc., it can quickly provide a pleasant, cool breeze for you and your guests. It is also suitable for use in warehouses and vegetable stands for humidity regulation and water cooling. It can cool the environment by approximately 60C.

The complete set allows you to build a fogging, humidifying, and cooling line of 4 - 6 m in length. Nozzles should be installed at a distance of 0.8m to 1.15m apart. It is also possible to mount it on a fan or several fans simultaneously, which enhances the fogging, humidifying, and especially cooling effects in rooms and outdoor areas.

PRODUCT DESCRIPTION:

  • Material: nickel-plated brass, outlet stainless steel SS304
  • Orifice size: 0.2 mm
  • Working pressure: 1-30 bar
  • Connection thread: 10/24 UNC 3/16 inch





APPLICATION:


  • Disinfection of production rooms, especially in the food industry.
  • Professional mist humidification and simultaneous air purification from pollutants such as dust, dirt, and smoke.
  • Control of mosquitoes, flies and other persistent insects indoors.
  • Elimination of unpleasant odors generated in the production process or at landfills.
  • Agriculture - for disinfection, pest control, humidity regulation, temperature reduction in rooms, administering inhalable medications, etc. in poultry farming, pigsties, barns, stables, zoos, greenhouses, plastic tunnels, mushroom farms, humidifiers for snails,
  • Industry - for disinfection, pest control, humidity regulation, temperature reduction in rooms, reducing dust in warehouses, production halls, mills, mining, sawmills, carpentries, wood storage, spinning mills, etc.
  • Gastronomy - for humidity control, removal of unpleasant odors, combating mosquitoes and flies, disinfection and cooling of rooms, terraces, patios, catering tents, bars, pubs, nightclubs, etc.
  • Home - for humidity control, removal of unpleasant odors, combating mosquitoes and flies, disinfection and cooling of rooms, terraces, patios


More about fogging


COMPARISON OF FOG NOZZLES:


Tabela_PORÓWNANIE DYSZ.jpg




WHAT TO PAY ATTENTION TO WHEN PURCHASING A NOZZLE?

1. Nozzle orifice size

  • Small orifice: Generates finer droplets, creating a delicate mist. Used in systems requiring precise fogging, e.g., cooling, humidifying, or decorative effects.
  • Large orifice: Produces larger droplets. Better for plant irrigation, dust reduction, or in industrial applications where very fine mist is not required.

2. Material of construction

Material affects durability, wear resistance, and corrosion resistance.
  • Brass: Durable, corrosion-resistant, often used in standard applications.
  • Stainless steel: Strong, resistant to chemicals and high temperatures, suitable for demanding environments (e.g., in the food industry).
  • Plastic: Lightweight and economical, suitable for less demanding applications.

3. Mechanism of action

  • High-pressure nozzles: Produce a fine mist under high water or liquid pressure. Used in evaporative cooling, dust control systems, or disinfection.
  • Air-atomizing nozzles: Use compressed air to break the liquid into a fine mist. Used in industry, e.g., for paint spraying or humidifying in production processes.

4. Liquid flow

  • Determines how much water or liquid flows through the nozzle in a given time.
  • Selection depends on demand – smaller flows are more effective for precise fogging, larger for more intense applications, such as irrigation.

5. Spray angle

  • Nozzles have different spray angles, usually from 30° to 120°.
  • Narrow angle (e.g., 30°–60°): Better for precise spraying in a specific area, e.g., spot cooling or humidifying small surfaces.
  • Wide angle (90°–120°): Ideal for even coverage of larger areas, e.g., in dust control systems or decorative effects.
  • Choosing the angle affects the efficiency and coverage of the mist in a given application.

6. Type of generated mist

  • Ultrafine mist (e.g., droplets with a diameter <10 microns): For cooling, humidifying, dust control.
  • Coarser mist: For irrigation or chemical applications.

7. Additional features

  • Anti-drip: Prevents water from dripping after pressure is released.
  • Self-cleaning: Features a mechanism that prevents clogging of the orifices.

8. Clogging resistance

  • Nozzles with internal filters: Protect against solid particles and clogging, which is crucial when using lower quality water.

  • Self-cleaning nozzles: Have a mechanism that prevents the orifice from blocking.


OUR NOZZLES COMPARED TO OTHERS








ADDITIONAL INFORMATION:

From experience, we know that you have many questions about both nozzles and fogging systems.
We encourage you to contact us via email or phone.
The smiling gentleman below will surely help you smile.png

Andrzej
tel. 697026236
sklep@ajkwiatkowscy.pl
