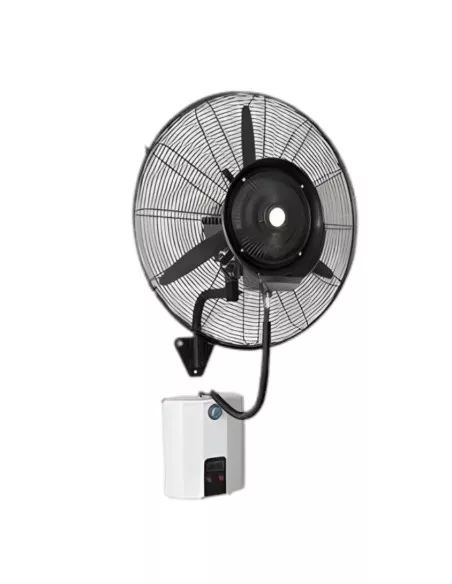

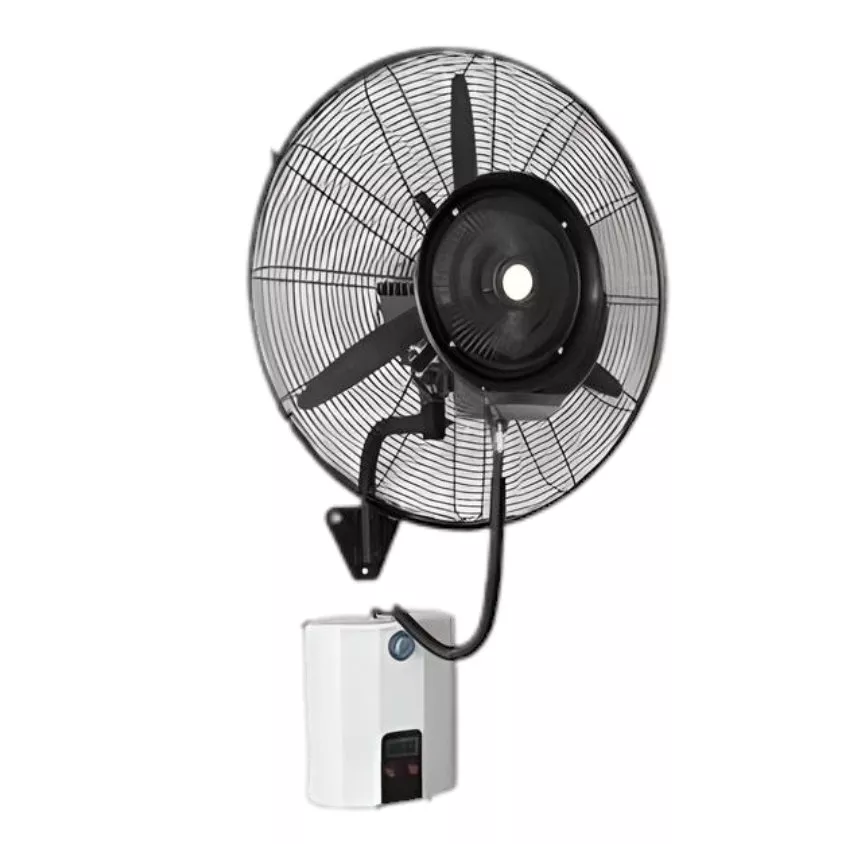

Industrial Water Air Conditioner FA750MW

Industrial water air conditioner - fan with a centrifugal cooling and air humidifying system using mist.

The FA-750MW model is an industrial misting machine and simultaneously an air cooling system. It is perfect for disinfection, mosquito control, fly elimination, mold removal, odor elimination, humidity regulation, and temperature reduction. A misting fan, a humidifier fan.

PRODUCT DESCRIPTION:

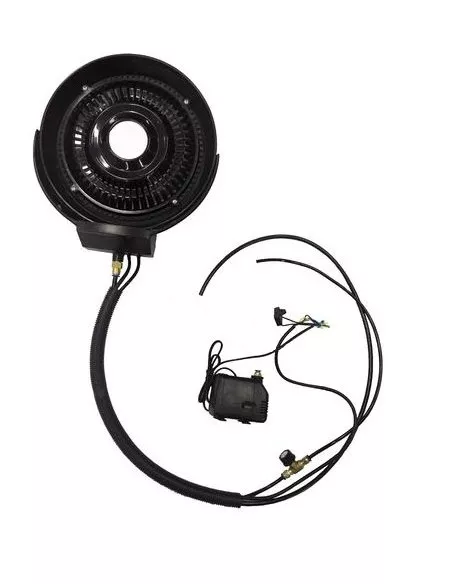

It employs modern centrifugal mist generation technology, making the misting machine reliable and durable. Unlike high-pressure systems, it does not require filters, the outlet nozzles do not clog, and there are no high-pressure pumps. This makes it easy to use and maintain. It features a rotating head, three operating speeds, mist quantity adjustment, and can be mounted to a wall. The centrifugal misting system produces very small and pleasant water droplets (<10µm), allowing it to penetrate all spaces effectively, remaining airborne for a long time, ensuring excellent disinfection and pest control, while also cleaning the atmosphere of dust and unpleasant odors.

The device is equipped with a water tank or a solution for disinfection (pest control), and it can be directly connected to the water supply network and used with a chemical dispenser.

The FA750MW misting machine is also used for cooling air and humidifying spaces in animal husbandry, greenhouses, plastic tunnels, restaurants, patios, warehouses, production halls, etc. It can lower the temperature by 4 ºC to 8 ºC over an area of 30-50 m². It has CE ISO 9001:2008 and RoHS certifications.

SPARE PARTS:
As an official distributor, we provide technical support and spare parts for the air conditioners and fans purchased from us. For more information: tel. 697026236.

TECHNICAL DATA:

• voltage: 220-240 V
• frequency: 50/60 Hz
• power: 230 W
• fan speed: 1400 RPM
• air flow: 17,400 m3/h
• fan diameter: 750 mm
• device height: 1700 - 2000 mm
• device weight: 26.5 kg
• water tank capacity: 10 l direct connection to the water supply
• misting time on tank: continuous
• droplet size: < 10 µm
• misting range: 30-50 m³

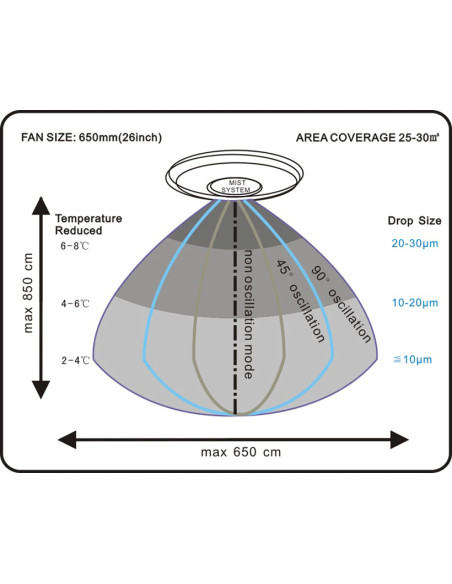

• temperature reduction: from 4° to 8°
• up-down adjustment: 30°
• oscillation: 90°

APPLICATION:

• Cooling production rooms, especially in the food industry.
• Forced circulation in rooms, halls, warehouses, storages.
• Agriculture - humidity control, temperature reduction in rooms, etc. in poultry farming, pigsties, barns, stables, zoos, greenhouses, plastic tunnels, mushroom farms.
• Industry - temperature reduction in rooms, dust reduction in warehouses, production halls, mills, mining, sawmills, carpentries, wood warehouses, spinning mills, etc. (along with misting lines and systems).
• Gastronomy - humidity control, removal of unpleasant odors, cooling of rooms, terraces, patios, catering tents, bars, pubs, nightclubs, etc.
• Home - humidity control, cooling of rooms, terraces, patios.

MIST HUMIDIFICATION:

The fan can be connected to misting systems used for air humidification, disinfection, mosquito control, fly elimination, mold removal, odor elimination, humidity regulation, and temperature reduction.
